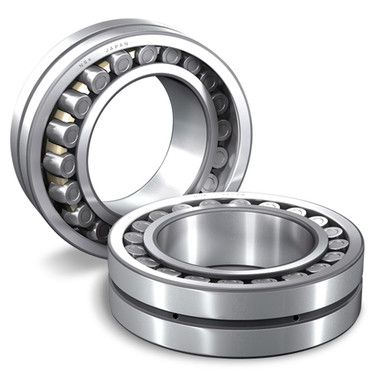

NSK Bearing 22232CAME4

SKUWI26FW
BrandNSK
Manufacturer Part #22232CAME4
Available to Order

Expected to Arrive ***

Images may not be exact. Please refer to Part # and Description.

Quantity:

$1,620.02

NSK Bearing 22232CAME4 Specifications

Bearing Type:

Shaker Screen Bearing
Bore Type:

Cyclindrical
Cage Material:

Machined Brass
Dynamic Load Rating:

1.14e+006 N
EAN or UPC:

29176088377
Enclosure:

Open
Fillet Radius:

3 mm
I.D.:

160 mm
Limiting Speed - Grease:

1200 rpm
Limiting Speed - Oil:

1500 rpm
Material:

Brass
O.D.:

290 mm
Package Quantity:

1.0 Piece
Radial Internal Clearance Specification:

Normal Clearance
Radial Internal Clearance:

Normal
Ring Modification:

Lubrication Groove & 3 Holes in Outer Ring is Standard
Shaft Shoulder Diameter [MIN]:

0.098 in
Static Load Rating [MAX]:

1.32e+006 N
Weight:

50.692 LB
Width:

80 mm

Help us improve our product information

Description

Since 1916 NSK has manufactured Bearings and Power Transmission components across the globe. From Automotive to Wind Energy – NSK is developing and manufacturing products for a wide variety of applications in key industrial sectors, all over the world. Along with quality, NSK manufacturers more ball bearings than any other manufacturer.
