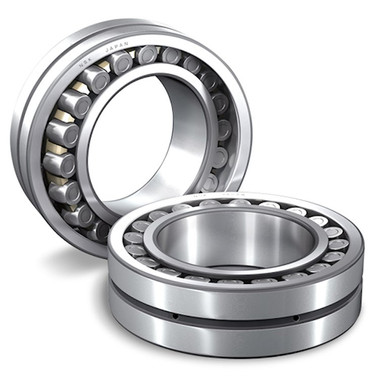

NSK Bearing 22226EAW507

Images may not be exact. Please refer to Part # and Description.

NSK

NSK Bearing 22226EAW507

MFG Part #
22226EAW507
SKU#
MZ66GE

Specifications

Bearing TypeShaker Screen Bearing
Bore TypeRound Bore
Cage MaterialPressed Steel
Dynamic Load Rating820000 N
EAN or UPC29176821745
See all product specifications

Need Some Help?

Get real service from real people, that know the products!

Monday - Friday

5:00am - 5:00pm PST

Frequently Ordered Together

Specs

Bearing Type:
Shaker Screen Bearing
Bore Type:
Round Bore
Cage Material:
Pressed Steel
Dynamic Load Rating:
820000 N
EAN or UPC:
29176821745
Enclosure:
Open
Fillet Radius:
3 mm
I.D.:
130 mm
Limiting Speed - Grease:
2200 rpm
Limiting Speed - Oil:
2600 rpm
Limiting Speed:
2600 rpm
Material:
Brass
O.D.:
230 mm
Package Quantity:
1.0 Piece
Radial Internal Clearance Specification:
Normal Clearance
Radial Internal Clearance:
Normal
Reference Speed:
2800 rpm
Ring Modification:
Lubrication Groove & 3 Holes in Outer Ring is Standard
Shaft Shoulder Diameter [MIN]:
0.098 in
Static Load Rating [MAX]:
940000 N
Weight:
25.353 LB
Width:
64 mm

Description

Since 1916 NSK has manufactured Bearings and Power Transmission components across the globe. From Automotive to Wind Energy – NSK is developing and manufacturing products for a wide variety of applications in key industrial sectors, all over the world. Along with quality, NSK manufacturers more ball bearings than any other manufacturer.
