NSK

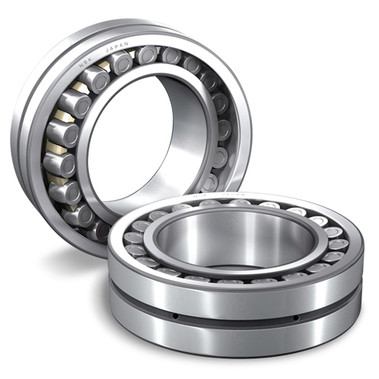

NSK Bearing 22224CAMKE4

MFG Part #
22224CAMKE4
SKU#
OF98YJ

Specifications

Bearing TypeRadial Bearing
Bore TypeTapered Bore
Cage MaterialMachined Brass
Dynamic Load Rating110156 lbf
EAN or UPC29176088285
See all product specifications

Need Some Help?

Get real service from real people, that know the products!

Monday - Friday

5:00am - 5:00pm PST

Specs

Bearing Type:
Radial Bearing
Bore Type:
Tapered Bore
Cage Material:
Machined Brass
Dynamic Load Rating:
110156 lbf
EAN or UPC:
29176088285
Enclosure:
Open
Fillet Radius:
2.1 mm
I.D.:
120 mm
Limiting Speed - Grease:
1600 rpm
Limiting Speed - Oil:
2000 rpm
O.D.:
215 mm
Radial Internal Clearance Specification:
Normal Clearance
Radial Internal Clearance:
Normal
Ring Modification:
Lubrication Groove & 3 Holes in Outer Ring is Standard
Static Load Rating [MAX]:
155118 lbf
Weight:
19.527 LB
Width:
58 mm

Description

Since 1916 NSK has manufactured Bearings and Power Transmission components across the globe. From Automotive to Wind Energy – NSK is developing and manufacturing products for a wide variety of applications in key industrial sectors, all over the world. Along with quality, NSK manufacturers more ball bearings than any other manufacturer.
$798.59
