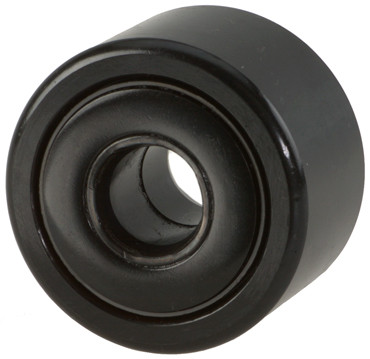

KOYO YCRSC-48

  • SKUJZ91LN
  • Brand
  • Manufacturer Part #YCRSC-48
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$321.53

KOYO YCRSC-48 Specifications

  • Bearing Type:
    Needle Bearing
  • Clamping Dia.:
    1 3/4 in
  • Dynamic Capacity:
    19500 lbf
  • EAN or UPC:
    605790206283
  • Enclosure:
    Sealed
  • Groove Width:
    3/8 in
  • I.D.:
    1 in
  • Inch/Metric:
    Inch
  • Inside Diameter Tolerance [MAX]:
    1.001 in
  • Inside Diameter Tolerance [MIN]:
    0.9995 in
  • Limiting Speed:
    1100 rpm
  • Material:
    Steel
  • Overall Width Tolerance [MAX]:
    1.818 in
  • Overall Width Tolerance [MIN]:
    1.803 in
  • Overall Width:
    1 13/16 in
  • Package Quantity:
    1.0 Piece
  • Roller Dia.:
    3 in
  • Roller Type:
    Crowned
  • Roller Width:
    1 3/4 in
  • Shaft Diameter - Press Fit [MAX]:
    1.0008 in
  • Shaft Diameter - Press Fit [MIN]:
    1.0003 in
  • Shaft Diameter - Slip Fit [MAX]:
    0.9996 in
  • Shaft Diameter - Slip Fit [MIN]:
    0.9991 in
  • Weight:
    3.14 LB
  • Working Load:
    24600 lbf
