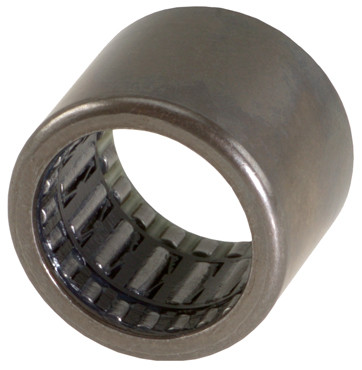

KOYO RCB-101416

Specs

Bearing Design:

Roller Clutch

Bore Type:

Round Bore, Inch Type

Cage Material:

Plastic

Capacity:

Standard Capacity

Clamp Torque:

143 lbf

EAN or UPC:

605790197116

Enclosure:

Open

End Type:

Open End

Housing Bore [MAX]:

0.8755 in

Housing Bore [MIN]:

0.8745 in

Housing Shoulder Diameter:

1.2 in

I.D.:

5/8 in

No. of Rows:

3

O.D. of Housing [MIN]:

1.2 in

O.D.:

7/8 in

Oil Hole:

w/o Oil Hole

Origin:

Roller Clutches

Precision Ground:

Yes

Radial Internal Clearance Specification:

N/A

Radial Internal Clearance:

N/A

Self Aligning:

No

Shaft Dia. [MAX]:

5/8 in

Shaft Dia. [MIN]:

0.6245 in

Tolerance:

Iso Class 0 (RBEC 1)

Weight:

0.006 LB

Width:

1 in

Working Load:

914 lbf
