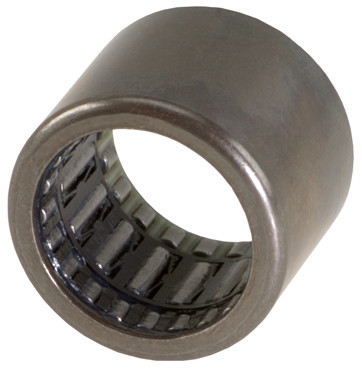

KOYO RC-061008-FS

  • SKUZQ28BV
  • Brand
  • Manufacturer Part #RC-061008-FS
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$33.21

KOYO RC-061008-FS Specifications

  • Bearing Design:
    Roller Clutch
  • Bore Type:
    Round Bore, Inch Type
  • Cage Material:
    Nylon
  • Capacity:
    Standard Capacity
  • Clamp Torque:
    45.4 lbf
  • EAN or UPC:
    605790205699
  • Enclosure:
    Open
  • End Type:
    Open End
  • Housing Bore [MAX]:
    0.6255 in
  • Housing Bore [MIN]:
    0.6245 in
  • Housing Shoulder Diameter:
    0.88 in
  • I.D.:
    3/8 in
  • O.D. of Housing [MIN]:
    0.88 in
  • O.D.:
    5/8 in
  • Oil Hole:
    w/o Oil Hole
  • Origin:
    Roller Clutches
  • Precision Ground:
    Yes
  • Radial Internal Clearance Specification:
    N/A
  • Radial Internal Clearance:
    N/A
  • Self Aligning:
    No
  • Shaft Dia. [MAX]:
    3/8 in
  • Shaft Dia. [MIN]:
    0.3745 in
  • Tolerance:
    Iso Class 0 (RBEC 1)
  • Weight:
    0.003 LB
  • Width:
    1/2 in
