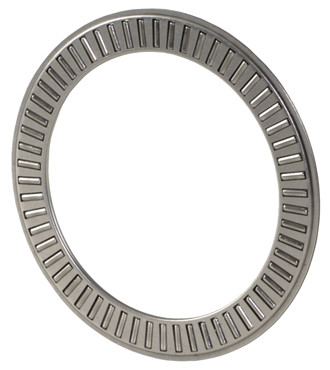

KOYO NTA-512

  • SKUFA14GM
  • Brand
  • Manufacturer Part #NTA-512
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$5.88

KOYO NTA-512 Specifications

  • Bearing Design:
    Cage & Roller Assembly
  • Bore Type:
    Round Bore, Inch Type
  • Cage Material:
    Steel
  • Capacity:
    Standard Capacity
  • Contact I.D.:
    0.4 in
  • Contact O.D.:
    0.64 in
  • Diameter to Clear Assembly O.D.:
    0.781 in
  • Dynamic Load Rating:
    1.05 lbf
  • EAN or UPC:
    605790196904
  • Enclosure:
    Open
  • End Type:
    Open End
  • I.D.:
    5/16 in
  • O.D.:
    3/4 in
  • Oil Hole:
    w/o Oil Hole
  • Origin:
    Needle Roller & Cage
  • Precision Ground:
    Yes
  • Radial Internal Clearance Specification:
    N/A
  • Radial Internal Clearance:
    N/A
  • Self Aligning:
    No
  • Shaft Pilot Diameter [MAX]:
    0.312 in
  • Shaft Pilot Diameter [MIN]:
    0.309 in
  • Static Load Rating [MAX]:
    2.51 lbf
  • Tolerance:
    Iso Class 0 (RBEC 1)
  • Weight:
    0.006 LB
  • Width:
    5/64 in
