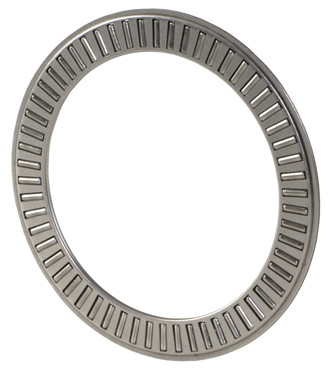

KOYO NTA-3650

  • SKUUN64FO
  • Brand
  • Manufacturer Part #NTA-3650
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$18.89

KOYO NTA-3650 Specifications

  • Bearing Design:
    Cage & Roller Assembly
  • Bore Type:
    Round Bore, Inch Type
  • Cage Material:
    Steel
  • Capacity:
    Standard Capacity
  • Contact I.D.:
    2.36 in
  • Contact O.D.:
    2.96 in
  • Diameter to Clear Assembly O.D.:
    3.156 in
  • Dynamic Load Rating:
    7.4 lbf
  • EAN or UPC:
    605790192708
  • Enclosure:
    Open
  • End Type:
    Open End
  • I.D.:
    2 1/4 in
  • O.D.:
    3 1/8 in
  • Oil Hole:
    w/o Oil Hole
  • Origin:
    Needle Roller & Cage
  • Precision Ground:
    Yes
  • Radial Internal Clearance Specification:
    N/A
  • Radial Internal Clearance:
    N/A
  • Self Aligning:
    No
  • Shaft Pilot Diameter [MAX]:
    2.25 in
  • Shaft Pilot Diameter [MIN]:
    2.247 in
  • Static Load Rating [MAX]:
    37.8 lbf
  • Tolerance:
    Iso Class 0 (RBEC 1)
  • Weight:
    0.1 LB
  • Width:
    1/8 in
