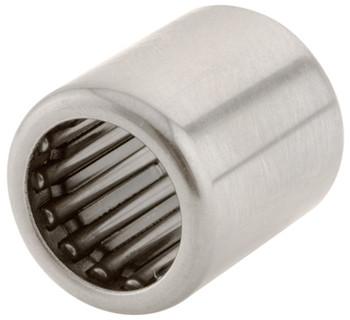

KOYO J-88

  • SKUVK96RS
  • Brand
  • Manufacturer Part #J-88
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$9.92

KOYO J-88 Specifications

  • Bearing Design:
    Outer Ring & Roller Assembly
  • Bore Type:
    Round Bore, Inch Type
  • Cage Material:
    Steel
  • Capacity:
    Standard Capacity
  • Dynamic Load Rating:
    1420 lbf
  • EAN or UPC:
    605790186646
  • Enclosure:
    Open
  • End Type:
    Open End
  • Housing Bore [MAX]:
    0.688 in
  • Housing Bore [MIN]:
    0.687 in
  • I.D.:
    1/2 in
  • Limiting Speed - Grease:
    16000 rpm
  • Limiting Speed - Oil:
    26000 rpm
  • O.D.:
    11/16 in
  • Oil Hole:
    w/o Oil Hole
  • Origin:
    Needle Radial
  • Package Quantity:
    1.0 Piece
  • Precision Ground:
    No
  • Radial Internal Clearance Specification:
    N/A
  • Radial Internal Clearance:
    N/A
  • Self Aligning:
    No
  • Static Load Rating [MAX]:
    1290 lbf
  • Tolerance:
    Iso Class 0 (RBEC 1)
  • Weight:
    0.003 LB
  • Width:
    1/2 in
  • Working Load:
    942 lbf
