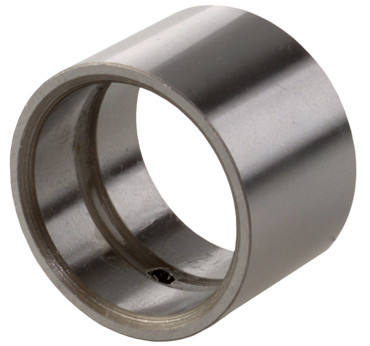

KOYO IR-445228

  • SKUEV50CY
  • BrandKOYO
  • Manufacturer Part #IR-445228
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$98.22

KOYO IR-445228 Specifications

  • Bearing Design:
    Removable Inner Ring– Straight
  • Bore Type:
    Round Bore, Inch Type
  • Cage Material:
    N/A
  • Capacity:
    N/A
  • EAN or UPC:
    605790186561
  • Enclosure:
    N/A
  • End Type:
    N/A
  • Fillet Radius:
    0.08 in
  • I.D.:
    2 3/4 in
  • O.D.:
    3 1/4 in
  • Oil Hole:
    w/Oil Hole
  • Package Quantity:
    1.0 Piece
  • Precision Ground:
    Yes
  • Radial Internal Clearance Specification:
    N/A
  • Radial Internal Clearance:
    N/A
  • Shaft Diameter - Press Fit [MAX]:
    2.7509 in
  • Shaft Diameter - Press Fit [MIN]:
    2.7504 in
  • Shaft Diameter - Slip Fit [MAX]:
    2.7496 in
  • Shaft Diameter - Slip Fit [MIN]:
    2.7489 in
  • Shaft Fillet [MAX]:
    0.08 in
  • Tolerance:
    Iso Class 0 (RBEC 1)
  • Weight:
    1.181 LB
  • Width:
    1 3/4 in
