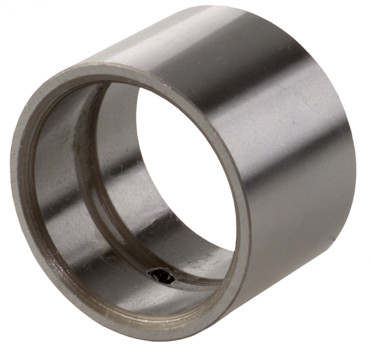

KOYO IR-404828

  • SKUBT54XR
  • BrandKOYO
  • Manufacturer Part #IR-404828
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$69.31

KOYO IR-404828 Specifications

  • Bearing Design:
    Removable Inner Ring– Straight
  • Bore Type:
    Round Bore, Inch Type
  • Cage Material:
    N/A
  • Capacity:
    N/A
  • EAN or UPC:
    605790199745
  • Enclosure:
    N/A
  • End Type:
    N/A
  • Fillet Radius:
    0.08 in
  • I.D.:
    2 1/2 in
  • O.D.:
    3 in
  • Oil Hole:
    w/Oil Hole
  • Package Quantity:
    1.0 Piece
  • Precision Ground:
    Yes
  • Radial Internal Clearance Specification:
    N/A
  • Radial Internal Clearance:
    N/A
  • Shaft Diameter - Press Fit [MAX]:
    2.5009 in
  • Shaft Diameter - Press Fit [MIN]:
    2.5004 in
  • Shaft Diameter - Slip Fit [MAX]:
    2.4996 in
  • Shaft Diameter - Slip Fit [MIN]:
    2.4989 in
  • Shaft Fillet [MAX]:
    0.08 in
  • Tolerance:
    Iso Class 0 (RBEC 1)
  • Weight:
    1.085 LB
  • Width:
    1 3/4 in
