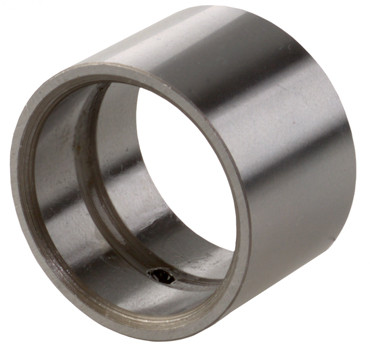

KOYO IR-232820

  • SKUWI60CF
  • BrandKOYO
  • Manufacturer Part #IR-232820
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$42.29

KOYO IR-232820 Specifications

  • Bearing Design:
    Removable Inner Ring– Straight
  • Bore Type:
    Round Bore, Inch Type
  • Cage Material:
    N/A
  • Capacity:
    N/A
  • EAN or UPC:
    605790212406
  • Enclosure:
    N/A
  • End Type:
    N/A
  • Fillet Radius:
    0.06 in
  • I.D.:
    1 7/16 in
  • O.D.:
    1 3/4 in
  • Oil Hole:
    w/Oil Hole
  • Precision Ground:
    Yes
  • Radial Internal Clearance Specification:
    N/A
  • Radial Internal Clearance:
    N/A
  • Shaft Diameter - Press Fit [MAX]:
    1.4383 in
  • Shaft Diameter - Press Fit [MIN]:
    1.4379 in
  • Shaft Diameter - Slip Fit [MAX]:
    1.4371 in
  • Shaft Diameter - Slip Fit [MIN]:
    1.4365 in
  • Shaft Fillet [MAX]:
    0.06 in
  • Tolerance:
    Iso Class 0 (RBEC 1)
  • Weight:
    0.264 LB
  • Width:
    1 1/4 in
