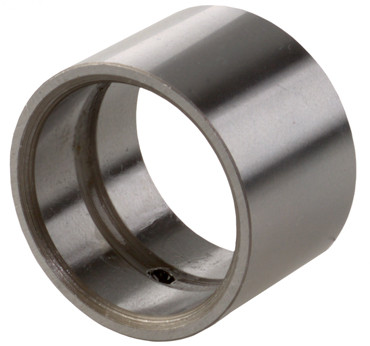

KOYO IR-151816

  • SKUIV27MK
  • BrandKOYO
  • Manufacturer Part #IR-151816
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$27.79

KOYO IR-151816 Specifications

  • Bearing Design:
    Removable Inner Ring– Straight
  • Bore Type:
    Round Bore, Inch Type
  • Cage Material:
    N/A
  • Capacity:
    N/A
  • EAN or UPC:
    605790212369
  • Enclosure:
    N/A
  • End Type:
    N/A
  • Fillet Radius:
    0.04 in
  • I.D.:
    15/16 in
  • O.D.:
    1 1/8 in
  • Oil Hole:
    w/Oil Hole
  • Package Quantity:
    1.0 Piece
  • Precision Ground:
    Yes
  • Radial Internal Clearance Specification:
    N/A
  • Radial Internal Clearance:
    N/A
  • Shaft Diameter - Press Fit [MAX]:
    0.9382 in
  • Shaft Diameter - Press Fit [MIN]:
    0.9378 in
  • Shaft Diameter - Slip Fit [MAX]:
    0.9372 in
  • Shaft Diameter - Slip Fit [MIN]:
    0.9367 in
  • Shaft Fillet [MAX]:
    0.04 in
  • Tolerance:
    Iso Class 0 (RBEC 1)
  • Weight:
    0.095 LB
  • Width:
    1 in
