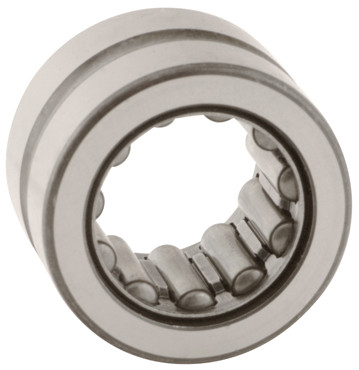

KOYO HJ-486024

  • SKUCZ71KQ
  • Brand
  • Manufacturer Part #HJ-486024
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$124.88

KOYO HJ-486024 Specifications

  • Bearing Design:
    Outer Ring & Roller Assembly
  • Bore Type:
    Round Bore, Inch Type
  • Cage Material:
    Steel
  • Capacity:
    Standard Capacity
  • Dynamic Load Rating:
    24100 lbf
  • EAN or UPC:
    605790203787
  • Enclosure:
    Open
  • End Type:
    Open End
  • Fillet Radius:
    0.08 in
  • Housing Bore - Loose Fit [MAX]:
    3.751 in
  • Housing Bore - Loose Fit [MIN]:
    3 3/4 in
  • Housing Bore - Tight Fit [MAX]:
    3 3/4 in
  • Housing Bore - Tight Fit [MIN]:
    3.748 in
  • Housing Shoulder Diameter:
    3.438 in
  • I.D.:
    3 in
  • Limiting Speed - Grease:
    3700 rpm
  • Limiting Speed - Oil:
    5600 rpm
  • O.D.:
    3 3/4 in
  • Oil Hole:
    w/Oil Hole
  • Origin:
    Needle Radial
  • Package Quantity:
    1.0 Piece
  • Precision Ground:
    Yes
  • Radial Internal Clearance Specification:
    N/A
  • Radial Internal Clearance:
    N/A
  • Self Aligning:
    No
  • Shaft Diameter - Press Fit [MAX]:
    2.9988 in
  • Shaft Diameter - Press Fit [MIN]:
    2.9981 in
  • Shaft Diameter - Slip Fit [MAX]:
    3 in
  • Shaft Diameter - Slip Fit [MIN]:
    2.9993 in
  • Static Load Rating [MAX]:
    50900 lbf
  • Tolerance:
    Iso Class 0 (RBEC 1)
  • Weight:
    1.325 LB
  • Width:
    1 1/2 in
