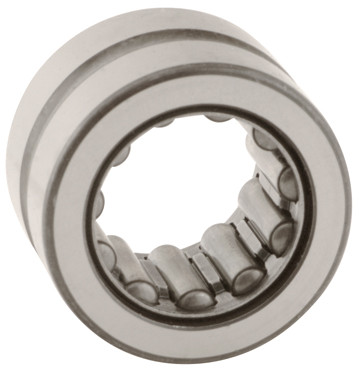

KOYO HJ-263520

  • SKUVE76UA
  • Brand
  • Manufacturer Part #HJ-263520
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$54.39

KOYO HJ-263520 Specifications

  • Bearing Design:
    Outer Ring & Roller Assembly
  • Bore Type:
    Round Bore, Inch Type
  • Cage Material:
    Steel
  • Capacity:
    Standard Capacity
  • Dynamic Load Rating:
    13500 lbf
  • EAN or UPC:
    605790195181
  • Enclosure:
    Open
  • End Type:
    Open End
  • Fillet Radius:
    0.06 in
  • Housing Bore - Loose Fit [MAX]:
    2.189 in
  • Housing Bore - Loose Fit [MIN]:
    2 3/16 in
  • Housing Bore - Tight Fit [MAX]:
    2.187 in
  • Housing Bore - Tight Fit [MIN]:
    2.186 in
  • Housing Shoulder Diameter:
    2 in
  • I.D.:
    1 5/8 in
  • Limiting Speed - Grease:
    7000 rpm
  • Limiting Speed - Oil:
    11000 rpm
  • O.D.:
    2 3/16 in
  • Oil Hole:
    w/Oil Hole
  • Origin:
    Needle Radial
  • Package Quantity:
    1.0 Piece
  • Precision Ground:
    Yes
  • Radial Internal Clearance Specification:
    N/A
  • Radial Internal Clearance:
    N/A
  • Self Aligning:
    No
  • Shaft Diameter - Press Fit [MAX]:
    1.624 in
  • Shaft Diameter - Press Fit [MIN]:
    1.6234 in
  • Shaft Diameter - Slip Fit [MAX]:
    1.625 in
  • Shaft Diameter - Slip Fit [MIN]:
    1.6244 in
  • Static Load Rating [MAX]:
    22600 lbf
  • Tolerance:
    Iso Class 0 (RBEC 1)
  • Weight:
    0.448 LB
  • Width:
    1 1/4 in
