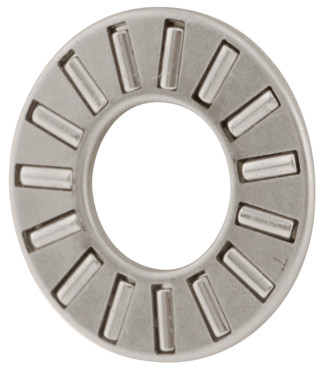

KOYO FNT-75100

  • SKUAN16RO
  • Brand
  • Manufacturer Part #FNT-75100
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$87.67

KOYO FNT-75100 Specifications

  • Bearing Design:
    Cage & Roller Assembly
  • Bore Type:
    Round Bore, Metric Type
  • Cage Material:
    Steel
  • Capacity:
    Standard Capacity
  • Contact I.D.:
    3.07 in
  • Contact O.D.:
    3.86 in
  • Diameter to Clear Assembly O.D.:
    3.976 in
  • Dynamic Load Rating:
    13.6 lbf
  • EAN or UPC:
    605790194948
  • Enclosure:
    Open
  • End Type:
    Open End
  • I.D.:
    75 mm
  • Matching Assembly:
    AS75100
  • O.D.:
    100 mm
  • Oil Hole:
    w/o Oil Hole
  • Origin:
    Needle Roller & Cage
  • Precision Ground:
    Yes
  • Radial Internal Clearance Specification:
    N/A
  • Radial Internal Clearance:
    N/A
  • Self Aligning:
    No
  • Shaft Pilot Diameter [MAX]:
    2.953 in
  • Shaft Pilot Diameter [MIN]:
    2.948 in
  • Static Load Rating [MAX]:
    78.3 lbf
  • Tolerance:
    Iso Class 0 (RBEC 1)
  • Weight:
    0.171 LB
  • Width:
    4 mm
