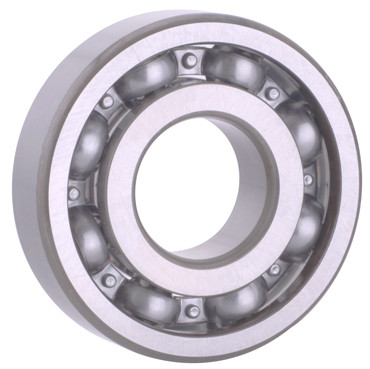

KOYO EE6C3

Images may not be exact. Please refer to Part # and Description.

KOYO

KOYO EE6C3

MFG Part #
EE6C3
SKU#
BY66TJ

Specifications

Ball MaterialSteel
Bearing TypeRadial
Bore TypeRound Bore
Cage MaterialSteel
Cage TypeMetal
See all product specifications

Need Some Help?

Get real service from real people, that know the products!

Monday - Friday

5:00am - 5:00pm PST

Frequently Ordered Together

Specs

Ball Material:
Steel
Bearing Type:
Radial
Bore Type:
Round Bore
Cage Material:
Steel
Cage Type:
Metal
Capacity:
Standard Capacity
Closed Width:
7/16 in
Contact Angle:
0°
Dynamic Load Rating:
1789 lbf
EAN or UPC:
605790115875
Enclosure:
Open
I.D.:
3/4 in
icNumber:
7703582
Inch/Metric:
Inch Bore
Inner Ring Width:
5/16 in
Limiting Speed - Grease:
11400 rpm
Limiting Speed - Oil:
17500 rpm
Limiting Speed - Sealed:
6900 rpm
Locking Device:
No Locking Device
Lubricant:
Oil Preservative
Material:
Steel
No. in Set:
Single Bearing
O.D. Type:
Straight
O.D.:
1 5/8 in
Open Width:
5/16 in
Origin:
Single Row Radial
Outer Ring Width:
5/16 in
Package Quantity:
1.0 Piece
Precision Level:
Standard (ABEC 1)
Precision:
Standard
Preload Level:
None
Radial Internal Clearance Specification:
Greater Than Normal Clearance
Radial Internal Clearance:
C3
Rows of Balls:
Single
Seal Material:
None
Seal Type:
Unsealed
Snap Ring:
No Snap Ring
Static Load Rating [MAX]:
1001 lbf
Temperature Range [MIN]:
-22 ?F
Weight:
0.111 LB
Width:
5/16 in
