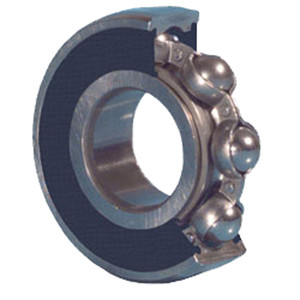

KOYO EE5S2RSC3

  • SKUEQ94CK
  • Brand
  • Manufacturer Part #EE5S2RSC3
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$35.75

KOYO EE5S2RSC3 Specifications

  • Ball Material:
    Steel
  • Bearing Type:
    Radial
  • Bore Type:
    Round Bore
  • Cage Material:
    Steel
  • Cage Type:
    Metal
  • Capacity:
    Standard Capacity
  • Closed Width:
    11/32 in
  • Contact Angle:
    0°
  • Dynamic Load Rating:
    1350 lbf
  • EAN or UPC:
    605790115776
  • Enclosure:
    Double Sealed
  • I.D.:
    5/8 in
  • icNumber:
    7696518
  • Inch/Metric:
    Inch Bore
  • Inner Ring Width:
    11/32 in
  • Limiting Speed - Grease:
    12700 rpm
  • Limiting Speed - Oil:
    19600 rpm
  • Limiting Speed - Sealed:
    7800 rpm
  • Locking Device:
    No Locking Device
  • Lubricant:
    Mul-Temp SRL
  • Material:
    Steel
  • No. in Set:
    Single Bearing
  • O.D. Type:
    Straight
  • O.D.:
    1 3/8 in
  • Open Width:
    9/32 in
  • Origin:
    Single Row Radial
  • Outer Ring Width:
    11/32 in
  • Package Quantity:
    1.0 Piece
  • Precision Level:
    Standard (ABEC 1)
  • Precision:
    Standard
  • Preload Level:
    None
  • Radial Internal Clearance Specification:
    Greater Than Normal Clearance
  • Radial Internal Clearance:
    C3
  • Rows of Balls:
    Single
  • Seal Material:
    Rubber
  • Seal Type:
    Contact Seals
  • Snap Ring:
    No Snap Ring
  • Static Load Rating [MAX]:
    731 lbf
  • Temperature Range [MAX]:
    212 ?F
  • Temperature Range [MIN]:
    -22 ?F
  • Weight:
    0.081 LB
  • Width:
    11/32 in
