KOYO

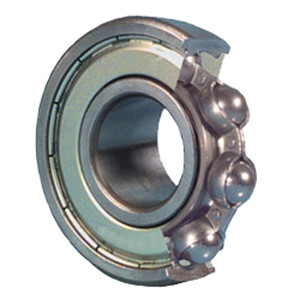

KOYO EE1SZZM3

MFG Part #
EE1SZZM3
SKU#
MH12TN

Specifications

Ball MaterialSteel
Bearing TypeRadial
Bore TypeRound Bore
Cage MaterialSteel
Cage TypeMetal
See all product specifications

Need Some Help?

Get real service from real people, that know the products!

Monday - Friday

5:00am - 5:00pm PST

Specs

Ball Material:
Steel
Bearing Type:
Radial
Bore Type:
Round Bore
Cage Material:
Steel
Cage Type:
Metal
Capacity:
Standard Capacity
Closed Width:
0.196 in
Contact Angle:
0°
Dynamic Load Rating:
293 lbf
EAN or UPC:
605790114441
Enclosure:
Double Shielded
I.D.:
3/16 in
Inch/Metric:
Inch Bore
Inner Ring Width:
0.196 in
Limiting Speed - Grease:
50000 rpm
Limiting Speed - Oil:
60000 rpm
Limiting Speed - Sealed:
30500 rpm
Locking Device:
No Locking Device
Lubricant:
Mul-Temp SRL
Material:
Steel
No. in Set:
Single Bearing
O.D. Type:
Straight
O.D.:
1/2 in
Open Width:
5/32 in
Outer Ring Width:
0.196 in
Package Quantity:
1.0 Piece
Precision Level:
Standard (ABEC 1)
Precision:
Standard
Preload Level:
None
Radial Internal Clearance Specification:
M3 Clearance - 5-10 Microns
Rows of Balls:
Single
Seal Material:
Metal
Seal Type:
Non-Contact Seals
Snap Ring:
No Snap Ring
Static Load Rating [MAX]:
110 lbf
Temperature Range [MAX]:
230 ?F
Temperature Range [MIN]:
-22 ?F
Weight:
0.005 LB
Width:
0.196 in
$19.46
