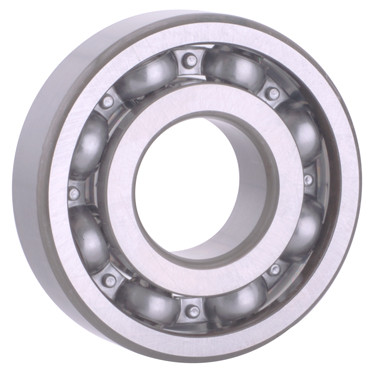

KOYO EE11/2M3

Images may not be exact. Please refer to Part # and Description.

KOYO

KOYO EE11/2M3

MFG Part #
EE11/2M3
SKU#
GS23SM

Specifications

Ball MaterialSteel
Bearing TypeRadial
Bore TypeRound Bore
Cage MaterialSteel
Cage TypeMetal
See all product specifications

Need Some Help?

Get real service from real people, that know the products!

Monday - Friday

5:00am - 5:00pm PST

Frequently Ordered Together

Specs

Ball Material:
Steel
Bearing Type:
Radial
Bore Type:
Round Bore
Cage Material:
Steel
Cage Type:
Metal
Capacity:
Standard Capacity
Closed Width:
0.196 in
Contact Angle:
0°
Dynamic Load Rating:
333 lbf
EAN or UPC:
605790113956
Enclosure:
Open
I.D.:
1/4 in
Inch/Metric:
Inch Bore
Inner Ring Width:
0.196 in
Limiting Speed - Grease:
44000 rpm
Limiting Speed - Oil:
52000 rpm
Limiting Speed - Sealed:
26800 rpm
Locking Device:
No Locking Device
Lubricant:
Oil Preservative
Material:
Steel
No. in Set:
Single Bearing
O.D. Type:
Straight
O.D.:
5/8 in
Open Width:
0.196 in
Outer Ring Width:
0.196 in
Package Quantity:
1.0 Piece
Precision Level:
Standard (ABEC 1)
Precision:
Standard
Preload Level:
None
Radial Internal Clearance Specification:
M3 Clearance - 5-10 Microns
Rows of Balls:
Single
Seal Material:
None
Seal Type:
Unsealed
Snap Ring:
No Snap Ring
Static Load Rating [MAX]:
140 lbf
Temperature Range [MIN]:
-22 ?F
Weight:
0.01 LB
Width:
0.196 in
