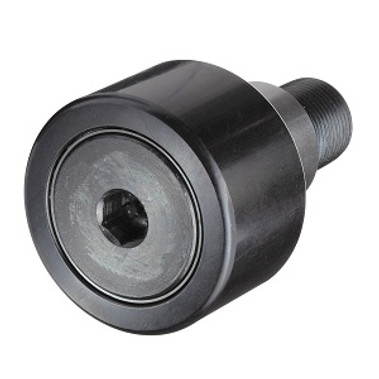

KOYO CRSBE-56

Specs

Bearing Type:

Needle Bearing

Clamp Torque:

2500 lbf

Clamping Dia.:

1.9219 in

Dynamic Load Rating:

25500 lbf

EAN or UPC:

605790198533

Enclosure:

Sealed

End Type:

Hex Hole

Fillet Radius:

0.09 in

Inch/Metric:

Inch

Limiting Speed:

990 rpm

Material:

Steel

Mounting Overhang:

2.08 in

Overall Length:

4 25/32 in

Package Quantity:

1.0 Piece

Roller Dia.:

3 1/2 in

Roller Type:

Straight

Roller Width:

2 in

Stud Dia.:

1 3/8 in

Stud Length:

2 3/4 in

Stud Type:

Eccentric

Thread Length:

1 3/8 in

Thread Pitch:

N/A

Thread Size:

1.375

Thread Type:

UNF

Threads per Inch:

12

Weight:

6.97 LB

Working Load:

18500 lbf
