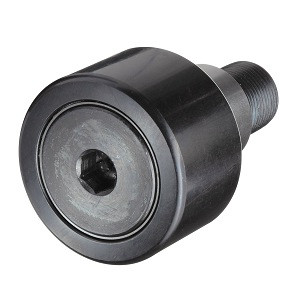

KOYO CRSBE-52

  • SKUTI91PG
  • Brand
  • Manufacturer Part #CRSBE-52
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$479.62

KOYO CRSBE-52 Specifications

  • Bearing Type:
    Needle Bearing
  • Clamp Torque:
    2050 lbf
  • Clamping Dia.:
    1 3/4 in
  • Dynamic Load Rating:
    19500 lbf
  • EAN or UPC:
    605790203237
  • Enclosure:
    Sealed
  • End Type:
    Hex Hole
  • Fillet Radius:
    0.09 in
  • Inch/Metric:
    Inch
  • Limiting Speed:
    1100 rpm
  • Material:
    Steel
  • Mounting Overhang:
    1.83 in
  • Overall Length:
    4 9/32 in
  • Package Quantity:
    1.0 Piece
  • Roller Dia.:
    3 1/4 in
  • Roller Type:
    Straight
  • Roller Width:
    1 3/4 in
  • Stud Dia.:
    1 1/4 in
  • Stud Length:
    2 1/2 in
  • Stud Type:
    Eccentric
  • Thread Length:
    1 1/4 in
  • Thread Pitch:
    N/A
  • Thread Size:
    1.25
  • Thread Type:
    UNEF
  • Threads per Inch:
    12
  • Weight:
    5.31 LB
  • Working Load:
    15200 lbf
