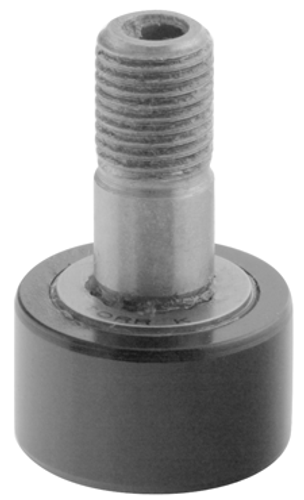

KOYO CRSBC-28

  • SKUQA16IE
  • Brand
  • Manufacturer Part #CRSBC-28
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$106.53

KOYO CRSBC-28 Specifications

  • Bearing Type:
    Needle Bearing
  • Clamp Torque:
    750 lbf
  • Clamping Dia.:
    1.0469 in
  • Dynamic Load Rating:
    7080 lbf
  • EAN or UPC:
    605790185410
  • Enclosure:
    Sealed
  • End Type:
    Hex Hole
  • Fillet Radius:
    0.04 in
  • Inch/Metric:
    Inch
  • Limiting Speed:
    1700 rpm
  • Material:
    Steel
  • Mounting Overhang:
    1.06 in
  • Overall Length:
    2 25/32 in
  • Package Quantity:
    1.0 Piece
  • Roller Dia.:
    1 3/4 in
  • Roller Type:
    Crowned
  • Roller Width:
    1 in
  • Stud Dia.:
    3/4 in
  • Stud Length:
    1 3/4 in
  • Stud Type:
    Standard
  • Thread Length:
    7/8 in
  • Thread Pitch:
    N/A
  • Thread Size:
    43924
  • Thread Type:
    UNF
  • Threads per Inch:
    16
  • Weight:
    0.868 LB
  • Working Load:
    5290 lbf
