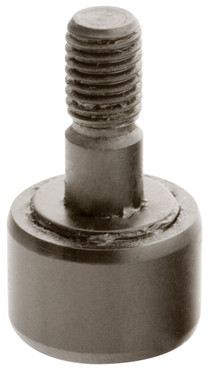

KOYO CR-32

Specs

(Catalog) Enclosure / End Type:

Unsealed/Slotted

Bearing Type:

Needle Bearing

Clamp Torque:

900 lbf

Clamping Dia.:

1.2031 in

Dynamic Load Rating:

10600 lbf

EAN or UPC:

605790211362

Enclosure:

Unsealed

End Type:

Slotted

Fillet Radius:

0.05 in

Inch/Metric:

Inch

Limiting Speed:

1500 rpm

Material:

Steel

Mounting Overhang:

1.33 in

Overall Length:

3 9/32 in

Package Quantity:

1.0 Piece

Roller Dia.:

2 in

Roller Type:

Straight

Roller Width:

1 1/4 in

Stud Dia.:

7/8 in

Stud Length:

2 in

Stud Type:

Standard

Thread Length:

1 in

Thread Pitch:

N/A

Thread Size:

44050

Thread Type:

UNF

Threads per Inch:

14

Weight:

1.41 LB

Working Load:

7280 lbf
