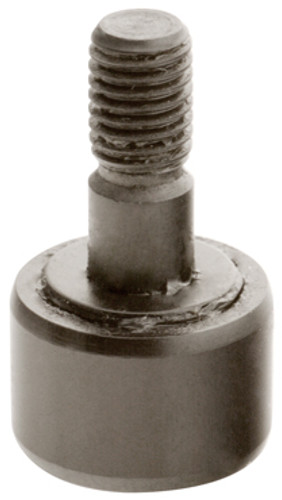

KOYO CR-14

  • SKUTP39NP
  • Brand
  • Manufacturer Part #CR-14
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$35.85

KOYO CR-14 Specifications

  • (Catalog) Enclosure / End Type:
    Unsealed/Slotted
  • Bearing Type:
    Needle Bearing
  • Clamp Torque:
    55 lbf
  • Clamping Dia.:
    1/2 in
  • Dynamic Load Rating:
    2250 lbf
  • EAN or UPC:
    605790211355
  • Enclosure:
    Unsealed
  • End Type:
    Slotted
  • Fillet Radius:
    0.015 in
  • Inch/Metric:
    Inch
  • Limiting Speed:
    3900 rpm
  • Material:
    Steel
  • Mounting Overhang:
    0.56 in
  • Overall Length:
    1 13/32 in
  • Package Quantity:
    1.0 Piece
  • Roller Dia.:
    7/8 in
  • Roller Type:
    Straight
  • Roller Width:
    1/2 in
  • Stud Dia.:
    3/8 in
  • Stud Length:
    7/8 in
  • Stud Type:
    Standard
  • Thread Length:
    3/8 in
  • Thread Pitch:
    N/A
  • Thread Size:
    44046
  • Thread Type:
    UNF
  • Threads per Inch:
    24
  • Weight:
    0.117 LB
  • Working Load:
    1320 lbf
