KOYO

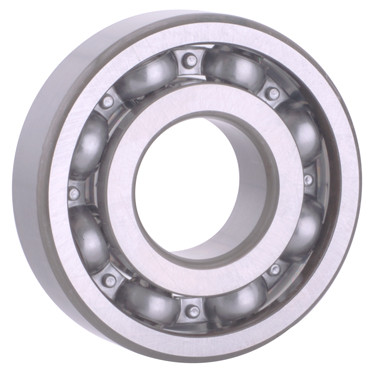

KOYO 6314C3

MFG Part #
6314C3
SKU#
MG87YH

Specifications

Ball MaterialSteel
Bearing TypeRadial
Bore TypeRound Bore
Cage MaterialSteel
Cage TypeMetal
See all product specifications

Need Some Help?

Get real service from real people, that know the products!

Monday - Friday

5:00am - 5:00pm PST

Specs

Ball Material:
Steel
Bearing Type:
Radial
Bore Type:
Round Bore
Cage Material:
Steel
Cage Type:
Metal
Capacity:
Standard Capacity
Contact Angle:
0°
Dynamic Load Rating:
15331 lbf
EAN or UPC:
605790079689
Enclosure:
Open
Fillet Radius:
2 mm
I.D.:
70 mm
icNumber:
7695867
Inch/Metric:
Metric Bore
Inner Ring Width:
35 mm
Limiting Speed - Grease:
4500 rpm
Limiting Speed - Oil:
5400 rpm
Locking Device:
No Locking Device
Lubricant:
Oil Preservative
Material:
Steel
No. in Set:
Single Bearing
O.D. Type:
Straight
O.D.:
150 mm
Origin:
Single Row Radial
Outer Ring Width:
35 mm
Precision Level:
Standard (ABEC 1)
Precision:
Standard
Preload Level:
None
Radial Internal Clearance Specification:
Greater Than Normal Clearance
Radial Internal Clearance:
C3
Rows of Balls:
Single
Seal Material:
None
Seal Type:
Unsealed
Snap Ring:
No Snap Ring
Static Load Rating [MAX]:
23379 lbf
Weight:
6.103 LB
Width:
35 mm
$286.20
