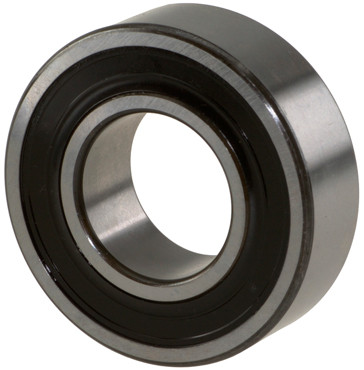

KOYO 63142RDTC3

Images may not be exact. Please refer to Part # and Description.

KOYO

KOYO 63142RDTC3

MFG Part #
63142RDTC3
SKU#
ST72GF

Specifications

Ball MaterialSteel
Bearing TypeDeep Groved
Bore TypeRound Bore
Cage MaterialSteel
Cage TypeMetal
See all product specifications

Need Some Help?

Get real service from real people, that know the products!

Monday - Friday

5:00am - 5:00pm PST

Frequently Ordered Together

Specs

Ball Material:
Steel
Bearing Type:
Deep Groved
Bore Type:
Round Bore
Cage Material:
Steel
Cage Type:
Metal
Capacity:
Standard Capacity
Contact Angle:
0°
Dynamic Load Rating:
29244 lbf
Enclosure:
Double Sealed
I.D.:
70 mm
Inch/Metric:
Metric Bore
Inner Ring Width:
35 in
Limiting Speed - Grease:
4100 rpm
Locking Device:
No Locking Device
Lubricant:
Mul-Temp SRL
Material:
High Carbon Steel Alloy
No. in Set:
Single Bearing
O.D. Type:
Straight
O.D.:
150 mm
Origin:
Single Row Radial
Outer Ring Width:
35 mm
Precision Level:
Standard (ABEC 1)
Precision:
Standard
Preload Level:
None
Radial Internal Clearance Specification:
Greater Than Normal Clearance
Radial Internal Clearance:
C3
Rows of Balls:
Single
Seal Type:
Extremely Light Contact Seals
Snap Ring:
No Snap Ring
Static Load Rating [MAX]:
15331.4 lbf
Weight:
5.676 LB
Width:
35 mm
