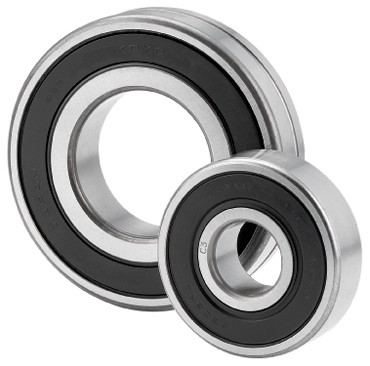

KOYO 63102RDC3

Specs

Ball Material:

Steel

Bearing Type:

Radial

Bore Type:

Round Bore

Cage Material:

Steel

Cage Type:

Metal

Capacity:

Standard Capacity

Contact Angle:

0°

Dynamic Load Rating:

17422 lbf

EAN or UPC:

605790077241

Enclosure:

Double Sealed

Fillet Radius:

2 mm

I.D.:

50 mm

icNumber:

7695968

Inch/Metric:

Metric Bore

Inner Ring Width:

27 mm

Limiting Speed - Grease:

5500 rpm

Locking Device:

No Locking Device

Lubricant:

Mul-Temp SRL

Material:

Steel

No. in Set:

Single Bearing

O.D. Type:

Straight

O.D.:

110 mm

Origin:

Single Row Radial

Outer Ring Width:

27 mm

Package Quantity:

1.0 Piece

Precision Level:

Standard (ABEC 1)

Precision:

Standard

Preload Level:

None

Radial Internal Clearance Specification:

Greater Than Normal Clearance

Radial Internal Clearance:

C3

Rows of Balls:

Single

Seal Material:

Rubber

Seal Type:

Extremely Light Contact Seals

Snap Ring:

No Snap Ring

Static Load Rating [MAX]:

8609.84 lbf

Temperature Range [MAX]:

230 ?F

Temperature Range [MIN]:

-22 ?F

Weight:

2.376 LB

Width:

27 mm
