KOYO

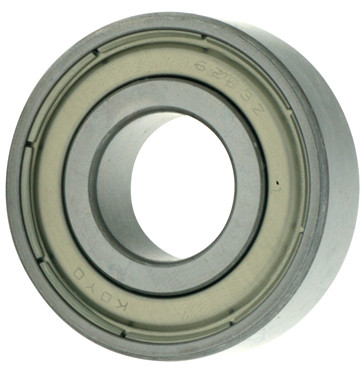

KOYO 6220ZZC3

MFG Part #
6220ZZC3
SKU#
YI92LX

Specifications

Ball MaterialSteel
Bearing TypeRadial
Bore TypeRound Bore
Cage MaterialSteel
Cage TypeMetal
See all product specifications

Need Some Help?

Get real service from real people, that know the products!

Monday - Friday

5:00am - 5:00pm PST

Specs

Ball Material:
Steel
Bearing Type:
Radial
Bore Type:
Round Bore
Cage Material:
Steel
Cage Type:
Metal
Capacity:
Standard Capacity
Contact Angle:
0°
Dynamic Load Rating:
27428 lbf
EAN or UPC:
605790069284
Enclosure:
Double Shielded
Fillet Radius:
2 mm
I.D.:
100 mm
icNumber:
7696025
Inch/Metric:
Metric Bore
Inner Ring Width:
34 mm
Limiting Speed - Grease:
3500 rpm
Limiting Speed - Oil:
4200 rpm
Limiting Speed - Sealed:
2300 rpm
Locking Device:
No Locking Device
Lubricant:
Mul-Temp SRL
Material:
Steel
No. in Set:
Single Bearing
O.D. Type:
Straight
O.D.:
180 mm
Origin:
Single Row Radial
Outer Ring Width:
34 mm
Precision Level:
Standard (ABEC 1)
Precision:
Standard
Preload Level:
None
Radial Internal Clearance Specification:
Greater Than Normal Clearance
Radial Internal Clearance:
C3
Rows of Balls:
Single
Seal Material:
Metal
Seal Type:
Non-Contact Seals
Snap Ring:
No Snap Ring
Static Load Rating [MAX]:
20931 lbf
Temperature Range [MAX]:
230 ?F
Temperature Range [MIN]:
-22 ?F
Weight:
7.438 LB
Width:
34 mm
$537.74
