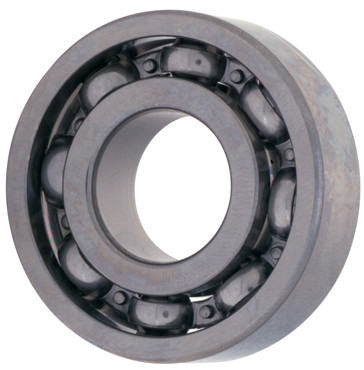

KOYO 6207C3

  • SKUCE42RO
  • Brand
  • Manufacturer Part #6207C3
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$41.78

KOYO 6207C3 Specifications

  • Ball Material:
    Steel
  • Bearing Type:
    Radial
  • Bore Type:
    Round Bore
  • Cage Material:
    Steel
  • Cage Type:
    Metal
  • Capacity:
    Standard Capacity
  • Contact Angle:
    0°
  • Dynamic Load Rating:
    5778 lbf
  • Enclosure:
    Open
  • Fillet Radius:
    1 mm
  • I.D.:
    35 mm
  • icNumber:
    7696004
  • Inch/Metric:
    Metric Bore
  • Inner Ring Width:
    17 mm
  • Limiting Speed - Grease:
    9200 rpm
  • Limiting Speed - Oil:
    11000 rpm
  • Limiting Speed - Sealed:
    6000 rpm
  • Locking Device:
    No Locking Device
  • Lubricant:
    Oil Preservative
  • Material:
    Steel
  • No. in Set:
    Single Bearing
  • O.D. Type:
    Straight
  • O.D.:
    72 mm
  • Origin:
    Single Row Radial
  • Outer Ring Width:
    17 mm
  • Precision Level:
    Standard (ABEC 1)
  • Precision:
    Standard
  • Preload Level:
    None
  • Radial Internal Clearance Specification:
    Greater Than Normal Clearance
  • Radial Internal Clearance:
    C3
  • Rows of Balls:
    Single
  • Seal Material:
    None
  • Seal Type:
    Unsealed
  • Snap Ring:
    No Snap Ring
  • Static Load Rating [MAX]:
    3462 lbf
  • Weight:
    0.64 LB
  • Width:
    17 mm

 Help us improve our product information

Description

Related Products
Add to Cart

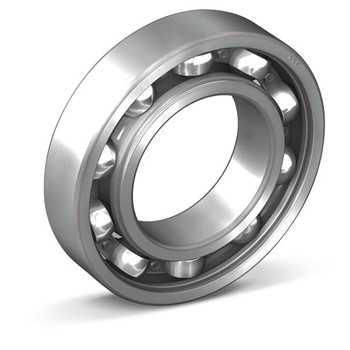

NACHI
