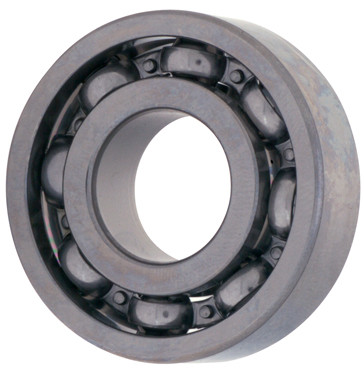

KOYO 6207C2FYP5

Images may not be exact. Please refer to Part # and Description.

KOYO

KOYO 6207C2FYP5

MFG Part #
6207C2FYP5
SKU#
QY39GW

Specifications

Ball MaterialSteel
Bearing TypeRadial
Bore TypeRound Bore
Cage MaterialCopper Alloy
Cage TypeMetal
See all product specifications

Need Some Help?

Get real service from real people, that know the products!

Monday - Friday

5:00am - 5:00pm PST

Frequently Ordered Together

Specs

Ball Material:
Steel
Bearing Type:
Radial
Bore Type:
Round Bore
Cage Material:
Copper Alloy
Cage Type:
Metal
Capacity:
Standard Capacity
Contact Angle:
0°
Dynamic Load Rating:
3462 lbf
EAN or UPC:
605790062643
Enclosure:
Open
Fillet Radius:
1 mm
I.D.:
35 mm
Inch/Metric:
Metric Bore
Inner Ring Width:
17 mm
Limiting Speed - Grease:
9200 rpm
Limiting Speed - Oil:
11000 rpm
Locking Device:
No Locking Device
Lubricant:
Oil Preservative
Material:
Steel
No. in Set:
Single Bearing
O.D. Type:
Straight
O.D.:
72 mm
Origin:
Single Row Radial
Outer Ring Width:
17 mm
Precision Level:
Medium Precision (ABEC 5)
Precision:
Medium
Preload Level:
None
Radial Internal Clearance Specification:
Normal Clearance
Radial Internal Clearance:
Normal
Rows of Balls:
Single
Seal Material:
None
Seal Type:
Unsealed
Snap Ring:
No Snap Ring
Static Load Rating [MAX]:
5777 lbf
Weight:
0.621 LB
Width:
17 mm
