KOYO

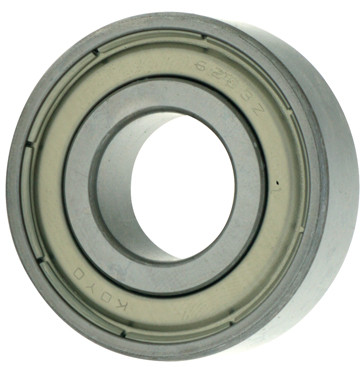

KOYO 6203ZC3

MFG Part #
6203ZC3
SKU#
VP78HT

Specifications

Ball MaterialSteel
Bearing TypeRadial
Bore TypeRound Bore
Cage MaterialSteel
Cage TypeMetal
See all product specifications

Need Some Help?

Get real service from real people, that know the products!

Monday - Friday

5:00am - 5:00pm PST

Specs

Ball Material:
Steel
Bearing Type:
Radial
Bore Type:
Round Bore
Cage Material:
Steel
Cage Type:
Metal
Capacity:
Standard Capacity
Contact Angle:
0°
Dynamic Load Rating:
1079 lbf
EAN or UPC:
605790057847
Enclosure:
Single Shield
Fillet Radius:
0.6 mm
I.D.:
17 mm
icNumber:
7700706
Inch/Metric:
Metric Bore
Inner Ring Width:
12 mm
Limiting Speed - Grease:
17000 rpm
Limiting Speed - Oil:
21000 rpm
Locking Device:
No Locking Device
Lubricant:
Mul-Temp SRL
Material:
Steel
No. in Set:
Single Bearing
O.D. Type:
Straight
O.D.:
40 mm
Origin:
Single Row Radial
Outer Ring Width:
12 mm
Precision Level:
Standard (ABEC 1)
Precision:
Standard
Preload Level:
None
Radial Internal Clearance Specification:
Greater Than Normal Clearance
Radial Internal Clearance:
C3
Rows of Balls:
Single
Seal Material:
Metal
Seal Type:
Non-Contact Seals
Snap Ring:
No Snap Ring
Static Load Rating [MAX]:
2147 lbf
Temperature Range [MAX]:
230 ?F
Temperature Range [MIN]:
-22 ?F
Weight:
0.155 LB
Width:
12 mm
$14.27
