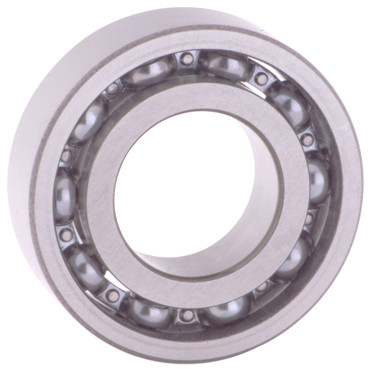

KOYO 6003C3

Images may not be exact. Please refer to Part # and Description.

KOYO

KOYO 6003C3

MFG Part #
6003C3
SKU#
DF76HY

Specifications

Ball MaterialSteel
Bearing TypeRadial
Bore TypeRound Bore
Cage MaterialSteel
Cage TypeMetal
See all product specifications

Need Some Help?

Get real service from real people, that know the products!

Monday - Friday

5:00am - 5:00pm PST

Frequently Ordered Together

Specs

Ball Material:
Steel
Bearing Type:
Radial
Bore Type:
Round Bore
Cage Material:
Steel
Cage Type:
Metal
Capacity:
Standard Capacity
Contact Angle:
0°
Dynamic Load Rating:
731 lbf
EAN or UPC:
605790043246
Enclosure:
Open
Fillet Radius:
0.3 mm
I.D.:
17 mm
icNumber:
7696001
Inch/Metric:
Metric Bore
Inner Ring Width:
10 mm
Limiting Speed - Grease:
21000 rpm
Limiting Speed - Oil:
25000 rpm
Locking Device:
No Locking Device
Lubricant:
Oil Preservative
Material:
Steel
No. in Set:
Single Bearing
O.D. Type:
Straight
O.D.:
35 mm
Origin:
Single Row Radial
Outer Ring Width:
10 mm
Precision Level:
Standard (ABEC 1)
Precision:
Standard
Preload Level:
None
Radial Internal Clearance Specification:
Greater Than Normal Clearance
Radial Internal Clearance:
C3
Rows of Balls:
Single
Seal Material:
None
Seal Type:
Unsealed
Snap Ring:
No Snap Ring
Static Load Rating [MAX]:
1349 lbf
Weight:
0.093 LB
Width:
10 mm
