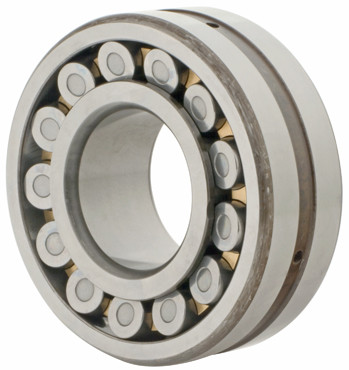

KOYO 23138RW33C3FY

  • SKUNI54FM
  • BrandKOYO
  • Manufacturer Part #23138RW33C3FY
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$4,516.76

KOYO 23138RW33C3FY Specifications

  • Bearing Type:
    Radial Bearing
  • Bore Type:
    Round Bore
  • Cage Material:
    Brass/Bronze
  • Dynamic Load Rating:
    245042 lbf
  • EAN or UPC:
    605790013744
  • Enclosure:
    Unsealed
  • Fillet Radius:
    3 mm
  • I.D.:
    190 mm
  • Limiting Speed - Grease:
    1000 rpm
  • Limiting Speed - Oil:
    1400 rpm
  • O.D.:
    320 mm
  • Origin:
    Spherical Radial
  • Radial Internal Clearance Specification:
    Greater Than Normal Clearance
  • Radial Internal Clearance:
    C3
  • RIC:
    C3
  • Ring Modification:
    W33 - Lubrication Groove & 3 Holes in Outer Ring
  • Static Load Rating [MAX]:
    449618 lbf
  • Tolerance:
    Iso Class 0 (Equiv. to RBEC 1)
  • Weight:
    79.639 LB
  • Width:
    104 mm
