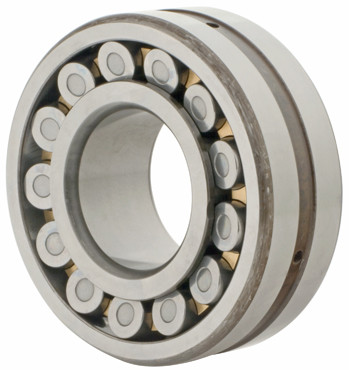

KOYO 22332RKW33C3FY

  • SKUYG12AN
  • Brand
  • Manufacturer Part #22332RKW33C3FY
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$4,666.12

KOYO 22332RKW33C3FY Specifications

  • Bearing Type:
    Radial Bearing
  • Bore Type:
    Tapered Bore
  • Cage Material:
    Brass/Bronze
  • Dynamic Load Rating:
    310236 lbf
  • EAN or UPC:
    605790011207
  • Enclosure:
    Unsealed
  • Fillet Radius:
    4 mm
  • I.D.:
    160 mm
  • Limiting Speed - Grease:
    1100 rpm
  • Limiting Speed - Oil:
    1400 rpm
  • O.D.:
    340 mm
  • Origin:
    Spherical Radial
  • Radial Internal Clearance Specification:
    Greater Than Normal Clearance
  • Radial Internal Clearance:
    C3
  • RIC:
    C3
  • Ring Modification:
    W33 - Lubrication Groove & 3 Holes in Outer Ring
  • Static Load Rating [MAX]:
    402408 lbf
  • Tolerance:
    Iso Class 0 (Equiv. to RBEC 1)
  • Weight:
    112.2 LB
  • Width:
    114 mm
