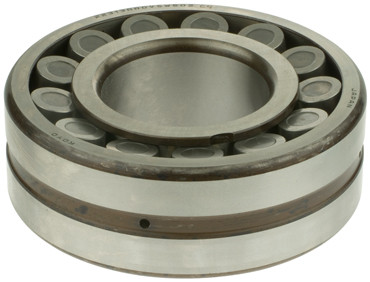

KOYO 22312RROVSW502C4FY

  • SKUHS57QW
  • BrandKOYO
  • Manufacturer Part #22312RROVSW502C4FY
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$444.57

KOYO 22312RROVSW502C4FY Specifications

  • Bearing Type:
    Shaker Screen Bearing
  • Bore Type:
    Round Bore
  • Cage Material:
    Brass/Bronze
  • Dynamic Load Rating:
    53729 lbf
  • EAN or UPC:
    605790009136
  • Enclosure:
    Unsealed
  • Fillet Radius:
    2.1 mm
  • I.D.:
    60 mm
  • Limiting Speed - Grease:
    3100 rpm
  • Limiting Speed - Oil:
    4100 rpm
  • O.D.:
    130 mm
  • Origin:
    Spherical Radial
  • Radial Internal Clearance Specification:
    Clearance Greater Than C3
  • Radial Internal Clearance:
    C4
  • RIC:
    C4
  • Ring Modification:
    W33 - Lubrication Groove & 3 Holes in Outer Ring
    W22 - Outer Ring w/Reduced Outside Diameter Tolerance
    W502 - Combination of W22 & W33
  • Static Load Rating [MAX]:
    62722 lbf
  • Tolerance:
    Iso Class 0 (Equiv. to RBEC 1)
  • Weight:
    6.785 LB
  • Width:
    46 mm
