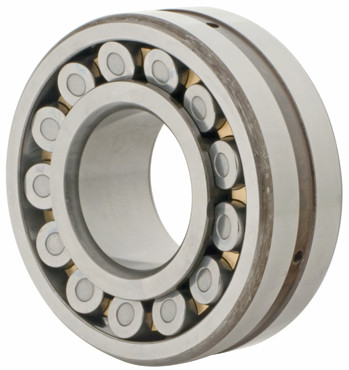

KOYO 22232RKW33C3FY

  • SKUCT88ER
  • Brand
  • Manufacturer Part #22232RKW33C3FY
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$2,580.24

KOYO 22232RKW33C3FY Specifications

  • Bearing Type:
    Radial Bearing
  • Bore Type:
    Tapered Bore
  • Cage Material:
    Brass/Bronze
  • Dynamic Load Rating:
    198956 lbf
  • EAN or UPC:
    605790008139
  • Enclosure:
    Unsealed
  • Fillet Radius:
    3 mm
  • I.D.:
    160 mm
  • Limiting Speed - Grease:
    1200 rpm
  • Limiting Speed - Oil:
    1600 rpm
  • O.D.:
    290 mm
  • Radial Internal Clearance Specification:
    Greater Than Normal Clearance
  • Radial Internal Clearance:
    C3
  • RIC:
    C3
  • Ring Modification:
    W33 - Lubrication Groove & 3 Holes in Outer Ring
  • Static Load Rating [MAX]:
    285507 lbf
  • Tolerance:
    Iso Class 0 (Equiv. to RBEC 1)
  • Weight:
    51.4 LB
  • Width:
    80 mm
