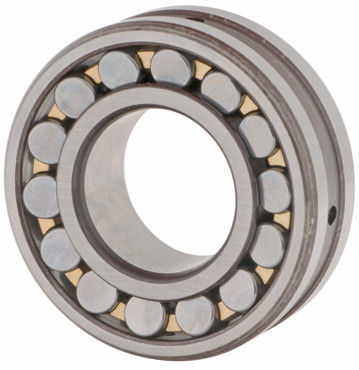

KOYO 22212RZW33C3

  • SKUCW44BN
  • Brand
  • Manufacturer Part #22212RZW33C3
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$451.80

KOYO 22212RZW33C3 Specifications

  • Bearing Type:
    Radial Bearing
  • Bore Type:
    Round Bore
  • Cage Material:
    Brass/Bronze
  • Dynamic Load Rating:
    29225 lbf
  • EAN or UPC:
    605790348259
  • Enclosure:
    Unsealed
  • Fillet Radius:
    1.5 mm
  • I.D.:
    60 mm
  • Limiting Speed - Grease:
    3500 rpm
  • Limiting Speed - Oil:
    4700 rpm
  • O.D.:
    110 mm
  • Origin:
    Spherical Radial
  • Radial Internal Clearance Specification:
    Greater Than Normal Clearance
  • Radial Internal Clearance:
    C3
  • RIC:
    C3
  • Ring Modification:
    W33 - Lubrication Groove & 3 Holes in Outer Ring
  • Static Load Rating [MAX]:
    32372 lbf
  • Tolerance:
    Iso Class 0 (Equiv. to RBEC 1)
  • Weight:
    2.646 LB
  • Width:
    28 mm
