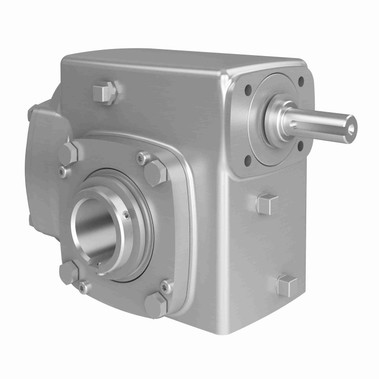

Hub City HERA Stainless Steel Helical-Hypoid Reducer - SSHERA35AS 29.10 (18) .750

  • SKUPF72ZD
  • Brand
  • Manufacturer Part #0250-57029
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$3,026.07

Hub City HERA Stainless Steel Helical-Hypoid Reducer - SSHERA35AS 29.10 (18) .750 Specifications

  • Center distance (inch):
    2.509
  • Certifications:
    IP69K, USDA Accepted Equipment
  • Housing Dimensions:
    (L)7.2 x (H)5.93 x (W)6
  • Housing Height (in):
    5.93 in
  • Housing Length (in):
    7.2 in
  • Housing Width (in):
  • Input Diameter (in):
    0.624 in
  • Input HP:
    1.17
  • Input Style:
    Shaft
  • Model Code:
    SSHERA35
  • Mounting Type:
    AS
  • Output Diameter (in):
    0.75 in
  • Output RPM:
    60.1
  • Output Torque:
    1100
  • Packaged Height:
    11 Inches
  • Packaged Length:
    12 Inches
  • Packaged Width:
    10 Inches
  • Product Line:
    STAINLESS STEEL HERA
  • Product Type:
    RIGHT ANGLE
  • Ratio Range:
    1.25069444444444
  • Ratio:
    29.10:1
  • Reduction:
    Double
  • Series Code:
    SSHERA35
  • Style:
    AS
  • UPC:
    662798942001
  • Weight:
    35.00 LB
