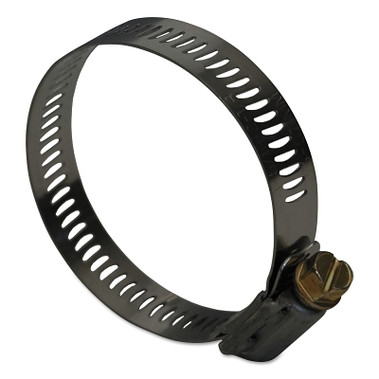

Dixon Valve HS Series Worm Gear Clamp, 1-5/16 in to 2-1/4 in Hose OD, 1/2 in W, Stainless Steel, Chrome Zinc-Plated Steel (10 EA / BOX)

  • SKU238-HS28
  • Brand
  • Manufacturer Part #HS28
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$17.16

Dixon Valve HS Series Worm Gear Clamp, 1-5/16 in to 2-1/4 in Hose OD, 1/2 in W, Stainless Steel, Chrome Zinc-Plated Steel (10 EA / BOX) Specifications

  • Bolt/Screw Material:
    SAE 1018 Case-Hardened Chrome Zinc-Plated Steel
  • Bolt/Screw Size [Nom]:
    5/16 in
  • Bolt/Screw Type:
    Slotted Hex Head
  • Hose O.D. [Max]:
    2-1/4 in
  • Hose O.D. [Min]:
    1-5/16 in
  • Locking Type:
    Worm Drive Buckle-Grooved Band
  • Material:
    SAE 300 Stainless Steel Band and Housing
  • Quantity:
    10 EA/BOX
  • Torque [Nom]:
    50 in·lb
  • Width [Nom]:
    1/2 in

 Help us improve our product information

Description

Four-piece construction
Maximum recommended torque 50 in‚·lb
