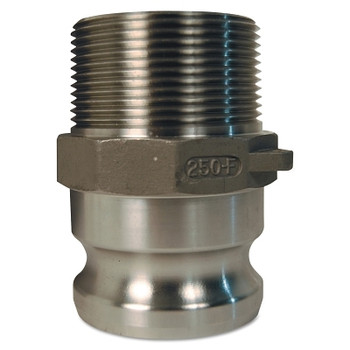

Dixon Valve Global Type F Adapters, 3 in, Male/Male, 316 Stainless Steel (1 EA / EA)

  • SKU238-G300-F-SS
  • Brand
  • Manufacturer Part #G300FSS
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$68.28

Dixon Valve Global Type F Adapters, 3 in, Male/Male, 316 Stainless Steel (1 EA / EA) Specifications

  • Applications:
    Liquid
  • Body Material:
    316 Stainless Steel
  • Body Size:
    3 in
  • Connection Type:
    Male/Male
  • Dia. [Nom]:
    3 19/32 in
  • Length [Nom]:
    4 3/32 in
  • Male Quick:
    3 in
  • Male Thread:
    3 in
  • Operating Pressure [Max]:
    125 psi
  • Operating Temp. [Max]:
    70 °F
  • Quantity:
    1 each
  • Shape:
    Straight
  • Thread - TPI or Pitch:
    3 in - 8 NPT
  • Thread Size X Thread Size:
    3 x 3 in
  • Type:
    Cam & Groove Adapter
  • Wt.:
    3.15 lb

 Help us improve our product information

Description

To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down
Uncoupling is as quick and simple as coupling - Just lift the cam arms and remove the adapter
Designed for use with liquids
Designed to interchange with all products produced to A-A-59326D
