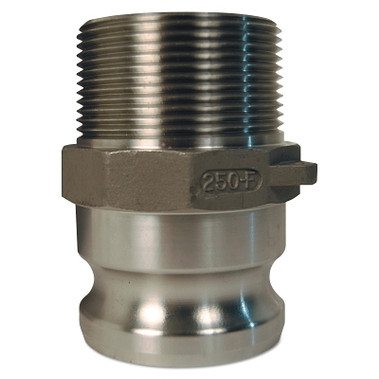

Dixon Valve Global Type F Adapters, 2 in, Male/Male, 316 Stainless Steel (25 EA / BX)

  • SKU238-G200-F-SS
  • Brand
  • Manufacturer Part #G200FSS
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$1,117.71

Dixon Valve Global Type F Adapters, 2 in, Male/Male, 316 Stainless Steel (25 EA / BX) Specifications

  • Applications:
    Liquid
  • Body Material:
    316 Stainless Steel
  • Body Size:
    2 in
  • Connection Type:
    Male/Male
  • Dia. [Nom]:
    2 15/32 in
  • Length [Nom]:
    3 19/32 in
  • Male Quick:
    2 in
  • Male Thread:
    2 in
  • Operating Pressure [Max]:
    250 psi
  • Operating Temp. [Max]:
    70 °F
  • Quantity:
    1 each
  • Shape:
    Straight
  • Thread - TPI or Pitch:
    2 in - 11-1/2 NPT
  • Thread Size X Thread Size:
    2 x 2 in
  • Type:
    Cam & Groove Adapter
  • Wt.:
    1.65 lb

 Help us improve our product information

Description

To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down
Uncoupling is as quick and simple as coupling - Just lift the cam arms and remove the adapter
Designed for use with liquids
Designed to interchange with all products produced to A-A-59326D
