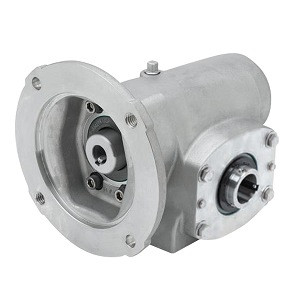

Dodge SS26Q20H14 Right Angle Shaft
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
Dodge SS26Q20H14 Right Angle Shaft Specifications
-
Base Included:No
-
Base to Center of Input Shaft:5.5 Inch / 139.7 Millimeter
-
Base to Center of Output Shaft:2.87 Inch / 72.898 Millimeter
-
Bolt Hole Diameter:0.375 Inch / 9.525 Millimeter
-
Brand:DODGE
-
Category:Right Angle Shafts
-
Center Distance:2.62 Inch / 66.548 Millimeter
-
EAN:782477050329
-
Fan Cooling:No
-
Gearing:Worm
-
Harmonized Tariff Code:8483.40.10.00
-
Housing Material And Finish:Stainless Steel
-
Inch - Metric:Inch
-
Input Rating value plus um:2.71HP
-
Input Shaft Diameter:0 Inch / 0 Millimeter
-
Input Shaft Length:0 Inch / 0 Millimeter
-
Input Type:C-Face Quill
-
Keyword String:Speed Worm
-
Long Description:Right Angle Reducer; 20:1 Nominal Ratio; 140TC Frame; Worm Gear; TIGEAR-2; C-Face Quill Input; Hollow Shaft Output; Direct Mounted; 1.439 Output Bore
-
Manufacturer Internal Number:SS26Q20H14
-
Manufacturer Name:ABB MOTORS AND MECHANICAL INC
-
Manufacturer URL:
-
Maximum Overhung load value And um:1610Lbs
-
Motor Included:No
-
Mounting Bolt Pattern footprint:Rectangular
-
Mounting Frame:140TC
-
Mounting Method:Direct Mounted
-
Mounting Position:Floor
-
Nominal Center Distance:2.62 Inch / 66.548 Millimeter
-
Nominal Max Input Rating:2HP
-
Nominal Max Output RPM:87.5
-
Nominal Ratio:0.834027777777778
-
Noun:Reducer
-
Output Bore:1.439 Inch / 36.551 Millimeter
-
Output RPM at 1750 RPM Input:88
-
Output Shaft Diameter:0 Inch / 0 Millimeter
-
Output Shaft Length:0 Inch / 0 Millimeter
-
Output Torque:1673In-Lbs
-
Output Type:Hollow Shaft
-
Overall Height:0 Inch / 0 Millimeter
-
Overall Length:9.37 Inch / 237.998 Millimeter
-
Overall Width:0 Inch / 0 Millimeter
-
Reducer Type:Right Angle
-
Tradename:TIGEAR-2
-
UNSPSC:26111537
-
Weight / LBS:65
-
Weight / US pound:0.01
