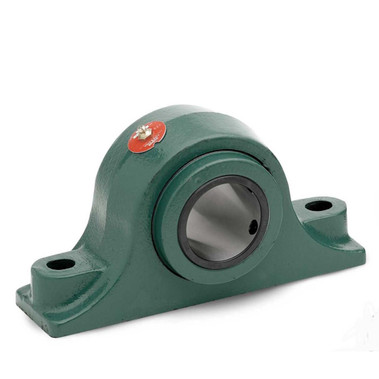

Images may not be exact. Please refer to Part # and Description.
Specifications
| Base to Bore Centerline | 79.38 mm |
|---|---|
| Base Width | 76 mm |
| Bearing Type | Tapered Roller |
| Bolt Center-to-Center Length | 236.5 to 246 mm |
| Bore Diameter | 70 mm |
Need Some Help?
Get real service from real people, that know the products!
Monday - Friday
5:00am - 5:00pm PST
Frequently Ordered Together
Specs
- Base to Bore Centerline:
- 79.38 mm
- Base Width:
- 76 mm
- Bearing Type:
- Tapered Roller
- Bolt Center-to-Center Length:
- 236.5 to 246 mm
- Bore Diameter:
- 70 mm
- Bore Type:
- Round
- Expansion Type:
- Non-Expansion Bearing (Fixed)
- Finish/Coating:
- Uncoated
- Housing Construction:
- Solid Pillow Block
- Housing Material:
- Cast Iron
- Locking Device:
- Double Springlok Collar
- Lubrication Type:
- Lubrication Fitting
- Manufacturer Catalog Number:
- 23627
- Maximum RPM:
- 2060 RPM
- Mounting:
- Two-Bolt Base
- Overall Length:
- 305 mm
- Overall Width:
- 4-1/2 in
- Radial Dynamic Load Capacity:
- 49.5 kN
- Seal Type:
- Triple Lip
- Standards Met:
- UL, AFBMA, AGMA, ASMMA, BSA, CMA, MPTA, PTDA
- Weight:
- 28.34 lbs
