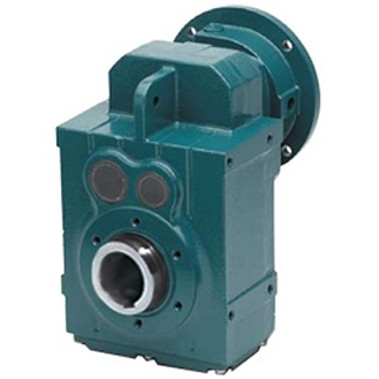

Dodge M16C21T06066 Parallel Shaft
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
Dodge M16C21T06066 Parallel Shaft Specifications
-
Base Included:No
-
Base to Center of Input Shaft:27.63 Inch / 701.802 Millimeter
-
Base to Center of Output Shaft:11.41 Inch / 289.814 Millimeter
-
Bolt Hole Diameter:1.181 Inch / 30 Millimeter
-
Brand:DODGE
-
Category:Parallel Shafts
-
Center Distance:16.22 Inch / 411.988 Millimeter
-
EAN:782476450762
-
Fan Cooling:No
-
Gearing:Helical
-
Harmonized Tariff Code:8483.40.10.00
-
Housing Material And Finish:Class 30 Gray Iron
-
Inch - Metric:Inch
-
Input Rating value plus um:27.04HP
-
Input Shaft Diameter:1.375 Inch / 34.925 Millimeter
-
Input Shaft Length:0 Inch / 0 Millimeter
-
Input Type:C-Face Quill
-
Keyword String:Speed Helical
-
Long Description:Parallel Reducer; QUANTIS; 60:1 Nominal Ratio; 213TC/215TC Frame; C-Face Quill Input; Bushed Output; Helical Gear; MSM Series; Shaft Mounted; 1-3/8 Input Shaft Diameter
-
Manufacturer Item Number:MW1682 210-CC 60.66 TAPERED
-
Manufacturer Name:ABB MOTORS AND MECHANICAL INC
-
Manufacturer URL:
-
Manufacturer's Series:MSM
-
Maximum Overhung load value And um:33618Lbs
-
Motor Included:No
-
Mounting Bolt Pattern footprint:Rectangular
-
Mounting Frame:213TC/215TC
-
Mounting Method:Shaft Mounted
-
Mounting Position:Universal
-
Nominal Center Distance:16.22 Inch / 411.99 Millimeter
-
Nominal Max Input Rating:25HP
-
Nominal Max Output RPM:29.2
-
Nominal Ratio:2.50069444444444
-
Noun:Reducer
-
Other Features:Double Reduction / With Bushing / Other Mount: Flange Mounted / Grey Iron with Cast Internal Ribbing / Clamp Collar / Tapered Bushing
-
Output Bore Range:2-7/16 To 4-7/16 Inch / 61.913 To 112.713 Millimeter
-
Output Bore:0 Inch / 0 Millimeter
-
Output RPM at 1750 RPM Input:29
-
Output Shaft Diameter:0 Inch / 0 Millimeter
-
Output Shaft Length:0 Inch / 0 Millimeter
-
Output Torque value plus um:59072In-Lbs
-
Output Type:Bushed
-
Overall Height:36.68 Inch / 931.672 Millimeter
-
Overall Length:20.04 Inch / 509.016 Millimeter
-
Overall Width:23.62 Inch / 599.948 Millimeter
-
Reducer Type:Parallel
-
Tradename:QUANTIS
-
UNSPSC:26111538
-
Weight / Kilogram:598.741
-
Weight / LBS:1181
