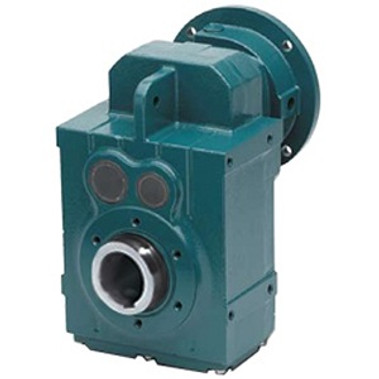

Dodge M14C21T13428 Parallel Shaft
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
Dodge M14C21T13428 Parallel Shaft Specifications
-
Base Included:No
-
Base to Center of Input Shaft:24.06 Inch / 611.124 Millimeter
-
Base to Center of Output Shaft:10.08 Inch / 256.032 Millimeter
-
Bolt Hole Diameter:0.945 Inch / 24 Millimeter
-
Brand:DODGE
-
Category:Parallel Shafts
-
Center Distance:13.98 Inch / 355.092 Millimeter
-
EAN:782476450472
-
Fan Cooling:No
-
Gearing:Helical
-
Harmonized Tariff Code:8483.40.10.00
-
Housing Material And Finish:Class 30 Gray Iron
-
Inch - Metric:Inch
-
Input Rating value plus um:15.92HP
-
Input Shaft Diameter:1.375 Inch / 34.925 Millimeter
-
Input Shaft Length:0 Inch / 0 Millimeter
-
Input Type:C-Face Quill
-
Keyword String:Speed Helical
-
Long Description:Parallel Reducer; QUANTIS; 125:1 Nominal Ratio; 213TC/215TC Frame; C-Face Quill Input; Bushed Output; Helical Gear; MSM Series; Shaft Mounted; 1-3/8 Input Shaft Diameter
-
Manufacturer Item Number:MW1483 210-CC 134.28 TAPERED
-
Manufacturer Name:ABB MOTORS AND MECHANICAL INC
-
Manufacturer URL:
-
Manufacturer's Series:MSM
-
Maximum Overhung load value And um:28310Lbs
-
Motor Included:No
-
Mounting Bolt Pattern footprint:Rectangular
-
Mounting Frame:213TC/215TC
-
Mounting Method:Shaft Mounted
-
Mounting Position:Universal
-
Nominal Center Distance:13.98 Inch / 355.09 Millimeter
-
Nominal Max Input Rating:15HP
-
Nominal Max Output RPM:14
-
Nominal Ratio:5.20902777777778
-
Noun:Reducer
-
Other Features:Triple Reduction / With Bushing / Other Mount: Flange Mounted / Grey Iron with Cast Internal Ribbing / Clamp Collar / Tapered Bushing
-
Output Bore Range:2-3/16 To 3-7/16 Inch / 55.563 To 87.313 Millimeter
-
Output Bore:0 Inch / 0 Millimeter
-
Output RPM at 1750 RPM Input:13
-
Output Shaft Diameter:0 Inch / 0 Millimeter
-
Output Shaft Length:0 Inch / 0 Millimeter
-
Output Torque value plus um:77004In-Lbs
-
Output Type:Bushed
-
Overall Height:32.48 Inch / 824.992 Millimeter
-
Overall Length:20.13 Inch / 511.302 Millimeter
-
Overall Width:19.69 Inch / 500.126 Millimeter
-
Reducer Type:Parallel
-
Tradename:QUANTIS
-
UNSPSC:26111538
-
Weight / Kilogram:369.224
-
Weight / LBS:759
