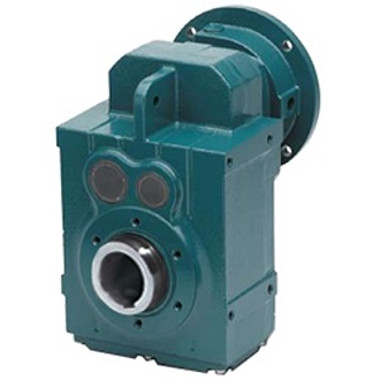

Dodge M10C25T01978 Parallel Shaft
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
Dodge M10C25T01978 Parallel Shaft Specifications
-
Base Included:No
-
Base to Center of Input Shaft:17.72 Inch / 450.088 Millimeter
-
Base to Center of Output Shaft:7.33 Inch / 186.182 Millimeter
-
Bolt Hole Diameter:0.63 Inch / 16 Millimeter
-
Brand:DODGE
-
Category:Parallel Shafts
-
Center Distance:10.39 Inch / 263.906 Millimeter
-
EAN:782476449810
-
Fan Cooling:No
-
Gearing:Helical
-
Harmonized Tariff Code:8483.40.10.00
-
Housing Material And Finish:Class 30 Gray Iron
-
Inch - Metric:Inch
-
Input Rating value plus um:40.41HP
-
Input Shaft Diameter:1.625 Inch / 41.275 Millimeter
-
Input Shaft Length:0 Inch / 0 Millimeter
-
Input Type:C-Face Quill
-
Keyword String:Speed Helical
-
Long Description:Parallel Reducer; QUANTIS; 20:1 Nominal Ratio; 254TC/256TC Frame; C-Face Quill Input; Bushed Output; Helical Gear; MSM Series; Shaft Mounted; 1-5/8 Input Shaft Diameter
-
Manufacturer Item Number:MW1082 250-CC 19.78 TAPERED
-
Manufacturer Name:ABB MOTORS AND MECHANICAL INC
-
Manufacturer URL:
-
Manufacturer's Series:MSM
-
Maximum Overhung load value And um:10291Lbs
-
Motor Included:No
-
Mounting Bolt Pattern footprint:Rectangular
-
Mounting Frame:254TC/256TC
-
Mounting Method:Shaft Mounted
-
Mounting Position:Universal
-
Nominal Center Distance:10.39 Inch / 263.91 Millimeter
-
Nominal Max Input Rating:40HP
-
Nominal Max Output RPM:87.5
-
Nominal Ratio:0.834027777777778
-
Noun:Reducer
-
Other Features:Double Reduction / With Bushing / Other Mount: Flange Mounted / Grey Iron with Cast Internal Ribbing / Clamp Collar / Tapered Bushing
-
Output Bore Range:1-11/16 To 2-11/16 Inch / 42.863 To 68.263 Millimeter
-
Output Bore:0 Inch / 0 Millimeter
-
Output RPM at 1750 RPM Input:88
-
Output Shaft Diameter:0 Inch / 0 Millimeter
-
Output Shaft Length:0 Inch / 0 Millimeter
-
Output Torque value plus um:28786In-Lbs
-
Output Type:Bushed
-
Overall Height:23.9 Inch / 607.06 Millimeter
-
Overall Length:15.56 Inch / 395.224 Millimeter
-
Overall Width:14.96 Inch / 379.984 Millimeter
-
Reducer Type:Parallel
-
Tradename:QUANTIS
-
UNSPSC:26111538
-
Weight / Kilogram:153.91
-
Weight / LBS:339
