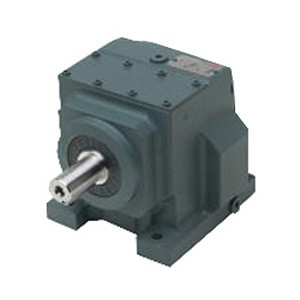

Dodge H8S13S02685 Inline Shaft

MFG Part #
H8S13S02685
SKU#
AX44QE

Specifications

Base IncludedYes
Base to Center of Input Shaft7.09 Inch / 180.086 Millimeter
Base to Center of Output Shaft7.09 Inch / 180.086 Millimeter
Bolt Hole Diameter0.69 Inch / 17.526 Millimeter
BrandDODGE
See all product specifications

Need Some Help?

Get real service from real people, that know the products!

Monday - Friday

5:00am - 5:00pm PST

Specs

Base Included:
Yes
Base to Center of Input Shaft:
7.09 Inch / 180.086 Millimeter
Base to Center of Output Shaft:
7.09 Inch / 180.086 Millimeter
Bolt Hole Diameter:
0.69 Inch / 17.526 Millimeter
Brand:
DODGE
Category:
Inline Shafts
EAN:
782476025076
Fan Cooling:
No
Gearing:
Helical
Harmonized Tariff Code:
8483.40.10.00
Housing Material And Finish:
Class 30 Gray Iron
Inch - Metric:
Inch
Input Rating value plus um:
15.38HP
Input Shaft Diameter:
1.375 Inch / 34.925 Millimeter
Input Shaft Length:
3.15 Inch / 80.01 Millimeter
Input Type:
Shaft
Keyword String:
Speed Helical
Long Description:
Inline Reducer; QUANTIS; 30:1 Nominal Ratio; Shaft Input; Shaft Output; Helical Gear; ILH Series; Direct Mounted; 1-3/8 Input Shaft Diameter
Manufacturer Item Number:
HB882 132SEP 26.85 2-1/8 SHFT"
Manufacturer Name:
ABB MOTORS AND MECHANICAL INC
Manufacturer URL:
http://www.dodge-pt.com"
Manufacturer's Series:
ILH
Maximum Overhung load value And um:
3437Lbs
Motor Included:
No
Mounting Bolt Pattern footprint:
Rectangular
Mounting Frame:
Not Applicable
Mounting Method:
Direct Mounted
Mounting Position:
Floor
Nominal Max Input Rating:
15HP
Nominal Max Output RPM:
58.3
Nominal Ratio:
1.25069444444444
Noun:
Reducer
Other Features:
Double Reduction / Grey Iron with Cast Internal Ribbing
Output Bore:
0 Inch / 0 Millimeter
Output RPM at 1750 RPM Input:
65
Output Shaft Diameter:
2.125 Inch / 53.975 Millimeter
Output Shaft Length:
3.94 Inch / 100.076 Millimeter
Output Torque value plus um:
14870In-Lbs
Output Type:
Shaft
Overall Height:
13.17 Inch / 334.518 Millimeter
Overall Length:
24.88 Inch / 631.952 Millimeter
Overall Width:
13.07 Inch / 331.978 Millimeter
Reducer Type:
Inline
Tradename:
QUANTIS
UNSPSC:
26111538
Weight / Kilogram:
100.33
Weight / LBS:
221
