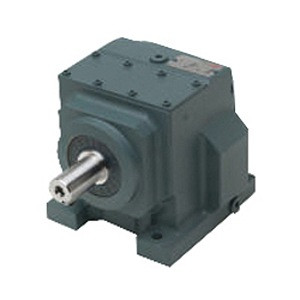

Dodge H8S11S08358 Inline Shaft
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
Dodge H8S11S08358 Inline Shaft Specifications
-
Base Included:Yes
-
Base to Center of Input Shaft:7.09 Inch / 180.086 Millimeter
-
Base to Center of Output Shaft:7.09 Inch / 180.086 Millimeter
-
Bolt Hole Diameter:0.69 Inch / 17.526 Millimeter
-
Brand:DODGE
-
Category:Inline Shafts
-
EAN:782476025052
-
Fan Cooling:No
-
Gearing:Helical
-
Harmonized Tariff Code:8483.40.10.00
-
Housing Material And Finish:Class 30 Gray Iron
-
Inch - Metric:Inch
-
Input Rating value plus um:4.94HP
-
Input Shaft Diameter:1.25 Inch / 31.75 Millimeter
-
Input Shaft Length:2.36 Inch / 59.944 Millimeter
-
Input Type:Shaft
-
Keyword String:Speed Helical
-
Long Description:Inline Reducer; QUANTIS; 75:1 Nominal Ratio; Shaft Input; Shaft Output; Helical Gear; ILH Series; Direct Mounted; 1-1/4 Input Shaft Diameter
-
Manufacturer Item Number:HB883 112SEP 83.58 2-1/8 SHFT"
-
Manufacturer Name:ABB MOTORS AND MECHANICAL INC
-
Manufacturer URL:
-
Manufacturer's Series:ILH
-
Maximum Overhung load value And um:4856Lbs
-
Motor Included:No
-
Mounting Bolt Pattern footprint:Rectangular
-
Mounting Frame:Not Applicable
-
Mounting Method:Direct Mounted
-
Mounting Position:Floor
-
Nominal Max Input Rating:3HP
-
Nominal Max Output RPM:23.3
-
Nominal Ratio:3.12569444444444
-
Noun:Reducer
-
Other Features:Triple Reduction / Grey Iron with Cast Internal Ribbing
-
Output Bore:0 Inch / 0 Millimeter
-
Output RPM at 1750 RPM Input:21
-
Output Shaft Diameter:2.125 Inch / 53.975 Millimeter
-
Output Shaft Length:3.94 Inch / 100.076 Millimeter
-
Output Torque value plus um:14870In-Lbs
-
Output Type:Shaft
-
Overall Height:13.17 Inch / 334.518 Millimeter
-
Overall Length:22.68 Inch / 576.072 Millimeter
-
Overall Width:13.07 Inch / 331.978 Millimeter
-
Reducer Type:Inline
-
Tradename:QUANTIS
-
UNSPSC:26111538
-
Weight / Kilogram:48.988
-
Weight / LBS:202
