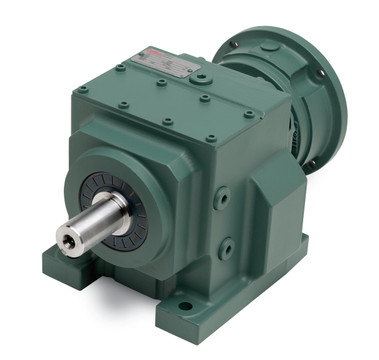

Dodge H8C18S04119 Inline Shaft
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
Dodge H8C18S04119 Inline Shaft Specifications
-
Base Included:Yes
-
Base to Center of Input Shaft:7.09 Inch / 180.086 Millimeter
-
Base to Center of Output Shaft:7.09 Inch / 180.086 Millimeter
-
Bolt Hole Diameter:0.69 Inch / 17.526 Millimeter
-
Brand:DODGE
-
Category:Inline Shafts
-
EAN:782476271770
-
Fan Cooling:No
-
Gearing:Helical
-
Harmonized Tariff Code:8483.40.10.00
-
Housing Material And Finish:Class 30 Gray Iron
-
Inch - Metric:Inch
-
Input Rating value plus um:10.02HP
-
Input Shaft Diameter:1.125 Inch / 28.575 Millimeter
-
Input Shaft Length:0 Inch / 0 Millimeter
-
Input Type:C-Face Quill
-
Keyword String:Speed Helical
-
Long Description:Inline Reducer; QUANTIS; 45:1 Nominal Ratio; 182TC/184TC Frame; C-Face Quill Input; Shaft Output; Helical Gear; ILH Series; Direct Mounted; 1-1/8 Input Shaft Diameter
-
Manufacturer Item Number:HB883 180-CC 41.19 2-1/8 SHFT"
-
Manufacturer Name:ABB MOTORS AND MECHANICAL INC
-
Manufacturer URL:
-
Manufacturer's Series:ILH
-
Maximum Overhung load value And um:4471Lbs
-
Motor Included:No
-
Mounting Bolt Pattern footprint:Rectangular
-
Mounting Frame:182TC/184TC
-
Mounting Method:Direct Mounted
-
Mounting Position:Floor
-
Nominal Max Input Rating:10HP
-
Nominal Max Output RPM:38.9
-
Nominal Ratio:1.87569444444444
-
Noun:Reducer
-
Other Features:Triple Reduction / Grey Iron with Cast Internal Ribbing / Clamp Collar
-
Output Bore:0 Inch / 0 Millimeter
-
Output RPM at 1750 RPM Input:42
-
Output Shaft Diameter:2.125 Inch / 53.975 Millimeter
-
Output Shaft Length:3.94 Inch / 100.076 Millimeter
-
Output Torque value plus um:14870In-Lbs
-
Output Type:Shaft
-
Overall Height:13.17 Inch / 334.518 Millimeter
-
Overall Length:20 Inch / 508 Millimeter
-
Overall Width:13.07 Inch / 331.978 Millimeter
-
Reducer Type:Inline
-
Tradename:QUANTIS
-
UNSPSC:26111538
-
Weight / Kilogram:90.718
-
Weight / LBS:174
